Measuring speed and distance
On one wheel of your vehicle, you will have a system with some holes that will generates a square signal. Each pulse will correspond to one or more turn, depending on the precision you need. == a kind of tachometer.

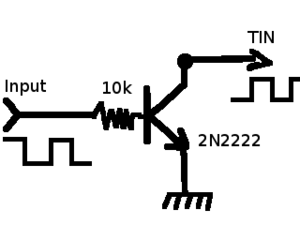

You have to adapt the signal level to 0-2,8V (on APF27) or 0-3,3V (on APF51) and limit the overshots.

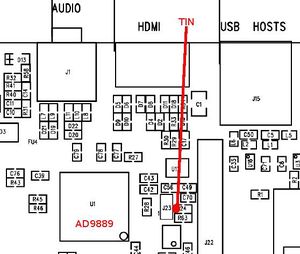

Then, you will be able to inject the signal on the TIN input of the APF27 or on the FPGA of the APF51. This is only possible if you have an APF27Dev and don't plan to use the HDMI chip. The TIN input is internally linked in the i.MX27 to some counters that we will configure and use to count the signal pulses. For the APF51 a counter will be implemented in the FPGA.
- Load driver that will allocate GPT2 timer:
# insmod gpt2_plat.ko
- Configure GPT2 for taking TIN as input and activates it:
# imxregs TCTL2 0x00000007
- Check that counter is increasing:
# imxregs TCN2 GPT Counter Register 2 TCN2 0x00000022 -> 00000000 00000000 00000000 00100010
