PPS is an Armadeus System's baseboard for the APF27 module. It can be used to implement and securize network applications such as routers and gateways.

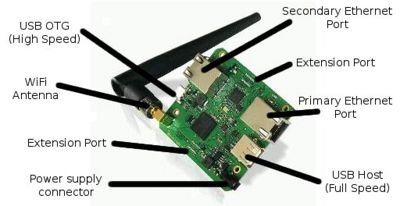

Front side, you can see dual Ethernet, USB 2.0 Host & OTG, WiFi Antenna, extension connector footprint and power supply
Back side, with an APF27 module plugged-in


Software features

There are some network applications/features that are preselected in the PPS baseboard default configuration:

Note Note: You can also use the PPS test scripts located in /usr/local/pps/scripts on the system to test some software functionalities.

Build informations

The following steps have to be performed to build PPS:

Armadeus 5.0 and later:

# make pps_defconfig
# wget -Ppatches/linux/2.6.29 http://www.armadeus.com/_downloads/apf27_PPS/software_patches/501-pps-armadeus-fix_fxl4_bug.patch
# make

Armadeus 4.1:

# make pps_defconfig
# wget -Ppatches/linux/2.6.29 http://www.armadeus.com/_downloads/apf27_PPS/software_patches/501-pps-armadeus-fix_fxl4_bug.patch
# wget -Ppatches/u-boot/1.3.4 http://www.armadeus.com/_downloads/apf27_PPS/software_patches/360-pps-apf27.patch
# make

Armadeus 4.0 and earlier:

# make pps_defconfig
# wget -Pbuildroot/target/device/armadeus/linux/kernel-patches/2.6.29 http://www.armadeus.com/_downloads/apf27_PPS/software_patches/501-pps-armadeus-fix_fxl4_bug.patch
# wget -Pbuildroot/target/u-boot http://www.armadeus.com/_downloads/apf27_PPS/software_patches/u-boot-1.3.4-500-pps-apf27.patch
# make

SSH terminal

The APF27 PPS filesystem is configured to enable SSH connection from a host computer. It allows you to access a system terminal through the default Ethernet port (the one aside USB Host connector).

  • The default connection informations are:
    • IP address:
    • Login: guest
    • Password: armadeus
  • Then you can connect to your system by running the following command on your host:
 $ ssh guest@

Debug / Development interface

  • In order to gain access to the serial port of the APF27 (U-Boot & Linux console), a small adapter cable has to be done.

A standard 2.54mm pin header connector (J5) allows accessing the TX and RX debug lines of the i.MX27. The signals are compatible with a the RS-232 standard (-12V/+12V) so no level translator is required when connecting it to your Host PC

The pinout is described in the datasheet and summarized here:

  • pin 1 (square pad): not connected
  • pin 2: TX line (processor side)
  • pin 3: RX line (processor side)
  • pin 4: GND
J5 pin 1
DB9 connection like on APF27Dev (requires Null-Modem cable)
DB9 connection for direct USB<->Serial adapter usage

WiFi usage

On PPS, WiFi/Libertas driver usage is a little bit different than on other platforms. Here are the things to know:

Drivers setup

You have to install Libertas SDIO and MMC drivers as modules to make Wi2Wi chipset work correctly on PPS (done by default):

$ make linux-menuconfig
Device drivers  --->
    [*] Network device support  --->
        Wireless LAN  --->
            [*] Wireless LAN (IEEE 802.11)
            <M>   Marvell 8xxx Libertas WLAN driver support
            < >     Marvell Livertas 8388 USB 802.11b/g cards
            <M>     Marvell Libertas 8385 and 8686 SDIO 802.11b/g cards
    <M> MMC/SD/SDIO card support  --->
              *** MMC/SD/SDIO Card Drivers ***
        <M>   MMC block device driver

Initializing the connection

Before creating the WiFi connection, you must load the Libertas SDIO and the MMC modules:

# sh /usr/local/pps/scripts/reset_wi2wi.sh

# modprobe mxcmmc
i.MX SDHC driver
mmc0: new SDIO card at address 0001

# modprobe libertas_sdio
lib80211: common routines for IEEE802.11 drivers
libertas_sdio: Libertas SDIO driver
libertas_sdio: Copyright Pierre Ossman
libertas_sdio mmc0:0001:1: firmware: requesting sd8686_helper.bin
libertas_sdio mmc0:0001:1: firmware: requesting sd8686.bin
libertas: 00:19:88:11:6b:d8, fw 9.70.3p36, cap 0x00000303
eth1 (libertas_sdio): not using net_device_ops yet
libertas: PREP_CMD: command 0x00a3 failed: 2
libertas: PREP_CMD: command 0x00a3 failed: 2
libertas: eth1: Marvell WLAN 802.11 adapter

Then all informations on Libertas_driver page apply.

Shutdown WiFi interface

You have to unload the MMC driver along with the Libertas SDIO if you want to completely shutdown the WiFi interface:

# ifconfig eth1 down
# rmmod mxcmmc
# rmmod libertas_sdio

Reset Wi2Wi

To reset the chipset, you have to toggle the Wi2Wi RESET GPIO (PE11), by calling this script:

# sh /usr/local/pps/scripts/reset_wi2wi.sh

Test scripts

You can find test scripts in PPS' filesystem to help you to test the PPS' functionalities. They are located in the directory /usr/local/pps/scripts but you can run them from any directory.


  • File
    • init_boa.sh
  • No argument
  • Usage: init_boa.sh
  • Functionality: Enable a web server with an interpreted HTML page accessible from outside the system.

USB Gadget

Ethernet Gadget

  • File
    • test_ether_gadget.sh
  • No argument
  • Usage: test_ether_gadget.sh
  • Functionality: Activate an Ethernet connection interface on the system through the USB Gadget port.
  • Test: Try to ping the system from your host PC on

RS232 Gadget

  • File
    • test_rs232_gadget.sh
  • No argument
  • Usage: test_rs232_gadget.sh
  • Functionality: Enable a RS232 connection interface on the system through the USB Gadget port.
  • Test: Enter some datas or texts through /dev/ttyACM0 on your host PC. You should see the same datas displayed on the system.


  • File
    • test_bridge.sh
  • No argument
  • Usage: test_bridge.sh
  • Functionality: Create a bridge through two connection interfaces on the system.


  • File
    • test_ether_smsc95xx.sh
  • No argument
  • Usage: test_ether_smsc95xx.sh
  • Functionality: Create an Ethernet connection interface through the Ethernet SMSC95xx port.
  • Test: Try to ping the address on your host PC.


IWConfig (WEP)

  • File
    • test_wifi.sh
  • No argument
  • Usage: test_wifi.sh
  • Functionality: Create a Wifi connection interface with IWConfig (WEP encryption).
  • Test: Ping the address on your host PC.

WPA Supplicant (WPA/WPA2)

  • Files
    • init_wpa.sh
    • reset_wi2wi.sh
    • stop_wpa.sh
  • Arguments
    • SSID: Wifi connection SSID
    • PASSPHRASE: Wifi connection passphrase
  • Usage: init_wpa.sh SSID PASSPHRASE
  • Functionality: Create a Wifi connection interface with WPA Supplicant (WPA/WPA2 encryption).
  • Test
    • Ping the address on your host PC.
    • To unable the connection, you can run stop_wpa.sh.
    • To restart WPA Supplicant, first run stop_wpa.sh then init_wpa.sh again.


  • File
    • test_ssh_tunnel.sh
  • Arguments
    • USERNAME: the login of the user you want to connect on.
    • HOSTADDRESS: the IP address of the host PC you want to connect on.
    • VIRTUALPORT: the virtual port used to hide the encrypted port.
    • TELNETPORT: the number of your Telnet port (must be same on the system and the host PC)
  • Functionality: Create a SSH connection between the system and your host PC on the Telnet port.
  • Test: To test it, launch a Wireshark on the host PC to check the datas on your host IP address. The password you type and the name of the Telnet protocol must be encrypted.


  • File
    • test_ipsec.sh
  • Argument
    • IPADDRESS: the system's IP address of the encrypted connection
  • Usage: test_ipsec.sh IPADDRESS
  • Functionality: Encrypt the connection between your host PC and the system.
  • Test
    • Before running the script, edit the file /etc/ipsec-tools.conf and put the right IP addresses for the system and your host PC.
    • Launch Wireshark on your host PC on the encrypted connection's IP address.
    • Run Telnet on the system toward your host PC:
      telnet HOST_ADDRESS
    • Your login, password and the name of the Telnet protocol must be encrypted.

Feature list

Wired communication

Wireless communication
